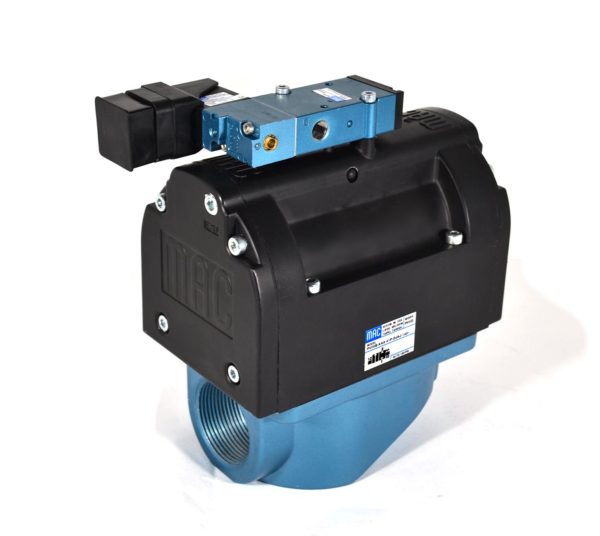

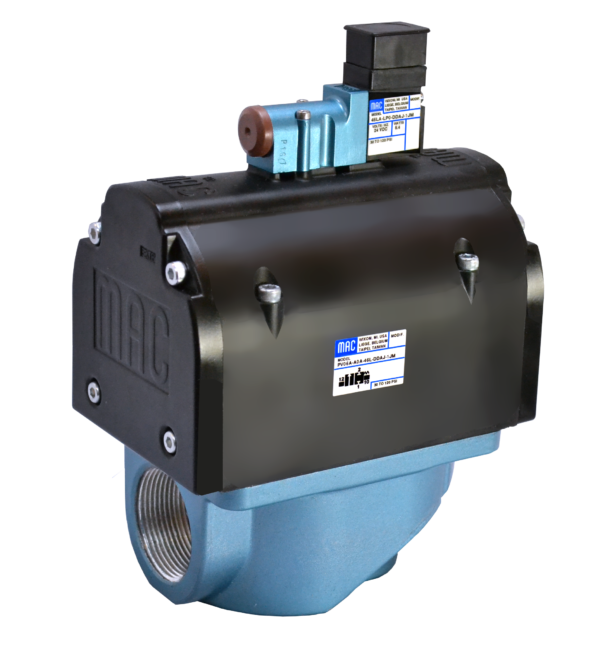

脉冲阀

MAC专利脉冲阀系列的开发，以取代目前的隔膜式技术，并创造一个更强大和可靠的阀门解决方案在工业应用。MAC脉冲阀是替代现有隔膜技术的理想选择，适用于反向喷射袋式除尘器、气力输送和散装物料处理。

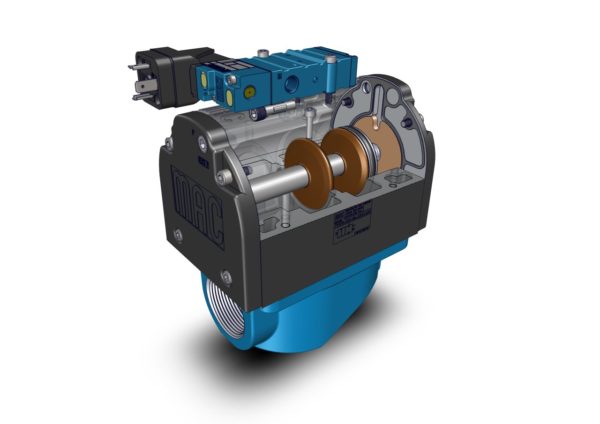

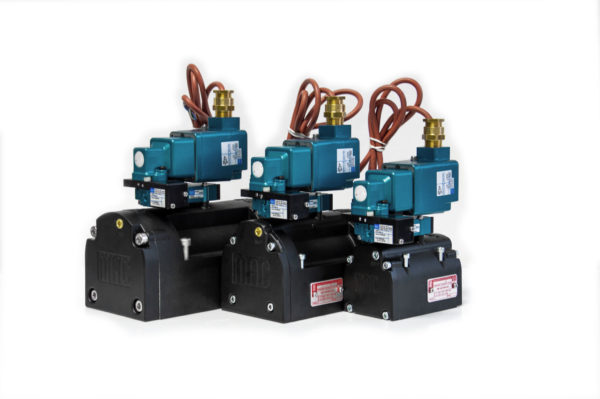

MAC专利脉冲阀可以订购两种先导配置之一：集成电磁阀先导结合快速、可重复的脉冲和手动操作器，而我们的远程放气版本，以提高性能和可靠性，在危险的地方。主体的MAC脉冲阀采用保税阀芯技术的优越可靠性超越现有的隔膜技术。一个检查蓄能器和一个带记忆弹簧的主滑阀用于确保在空气供应不充足的情况下回到初始位置。一系列转接板也已被释放，以取代现有的隔膜脉冲阀与直接下降，而不干扰现有的管道。

目前有（3）种尺寸可供选择：PV03用于¾”和1”应用，PV06用于1½”应用，PV09用于2&#8243；和2½&#8221；应用.

SKU: 691390 Category: Products

MAC Valves multi patented Bullet Valve® and subsequent products utilizing Bullet Valve® Technology have brought innovation to the air valve industry with MAC's patented balanced lifting-type solenoid design resulting in superior life, reliability, and repeatability, as well as superior flow in a compact package.

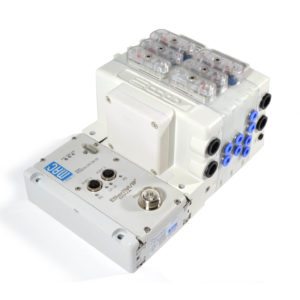

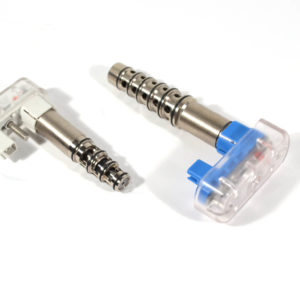

The BViQ® is available in B314 and BV414 configurations featuring these innovative characteristics:

Dual Bullet Valve® Cartridge slices – reducing overall footprint
Dual 4-way slices
Intermixing of 3-way & 4-way valve slices in a common assembly
MAConnect® – available for wire-free manifold interconnects
Single fastener BV mounting – provides quick and simple assembly
Adapts via MAConnect® to several interface adapter types – including MI/O-67®
Many of the Bullet Valve® modifications available – optimized rubbers, flows, etc.

BViQ® Options and Drawings

Quickview

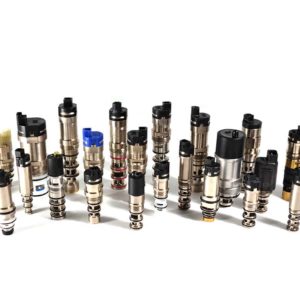

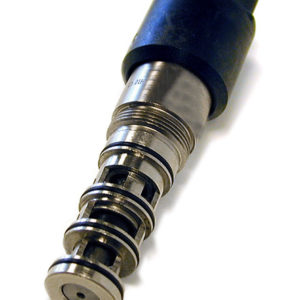

BULLET VALVE®

Products

The MAC Advantage Features:

VERY FEW PARTS
LONG LIFE LIFTING SOLENOID
ONE PIECE POPPET / ARMATURE
BALANCED DESIGN
SOLENOID ISOLATED FROM CONTAMINATED AIR
UNIQUE MOUNTING

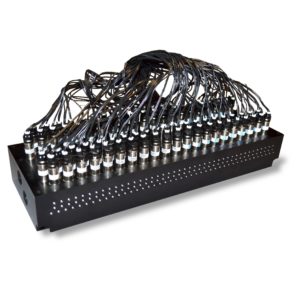

The Bullet Valve® (BV) represents yet another evolution in air valve technology from MAC. The Bullet Valve utilizes "lifting" solenoid technology. The MAC "lifting" configuration is unique, however, in that the valve maintains a balanced design - a signature feature of a MAC valve - shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations. 2-way and 3-way configurations of the BV cartridge (10mm, 14mm, and 21mm) are available. Application, Installation and Service Precautions

Cv (Max): 0.60

Configurations: Cartridge - Manifold: Non Plug-in

BViQ® is our latest Bullet Valve product

Click on image to download our Bullet Valve Catalog

Quickview

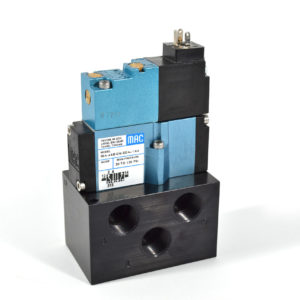

4-WAY AIR VALVES

Products

MAC Valves Solenoid Operated 4 Way

Valves with 4 ports; inlet, a common exhaust and two cylinder ports, one normally open and the other normally closed. Their common application is to operate double acting cylinders.

Small 4 Way Valves

Air flows up to 1.2 Cv

Large 4 Way Valves

Air flows from 1.2 Cv and hihger

Quickview

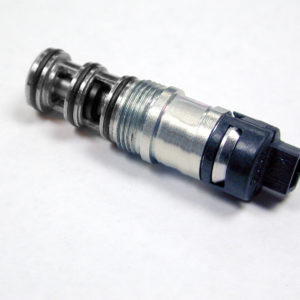

BV14

Products

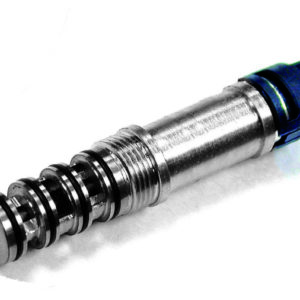

14mm Bullet Valve®

MAC Advantage Features:

2-WAY (BV214) AND 3-WAY (BV314) CONFIGURATIONS AVAILABLE
VERY FEW PARTS
LONG LIFE LIFTING SOLENOID
ONE PIECE POPPET / ARMATURE
BALANCED DESIGN
SOLENOID ISOLATED FROM CONTAMINATED AIR
UNIQUE MOUNTING

The BV14 represents yet another evolution in air valve technology from MAC. The Bullet Valve® utilizes "lifting" solenoid technology. The MAC "lifting" configuration is unique, however, in that the valve maintains a balanced design - a signature feature of a MAC valve - shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations. 2-way and 3-way configurations of the BV14 cartridge are available. Application, Installation and Service Precautions

Cv (Max): Up to 0.24 Cv

Configurations: Cartridge

Click on image to download our Bullet Valve® Catalog

Quickview

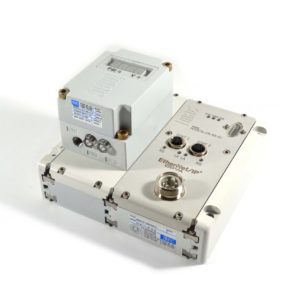

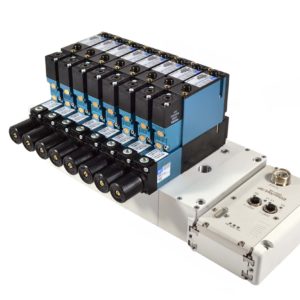

MI/O-67® Fieldbus

Products


MAConnect MI/O-67® will utilize existing MAConnect® technology with MI/O-67® specific part numbers	5 Protocols EtherNet/IP® EtherCAT POWERLINK® PROFINET® Modbus/TCP®


3 Modules Digital, Analog and PowerPlus™ modules to accommodate any I/O or additional valves needed	IP67 Designed to meet IP67 washdown specifications (with appropriate valve series modifications)


European Conformity Indicates conformity protection standards for products sold within the EEA

Quickview

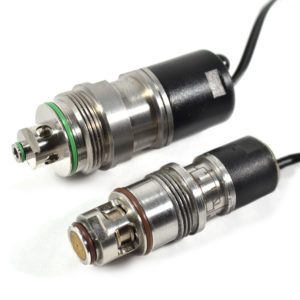

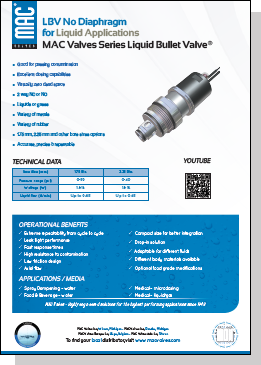

LIQUID VALVES

Products

The MAC Advantage™ Features:

2-way, 3-way, variable flow, filling and dosing valves
Wetted and non-wetted (media-separated) solenoids

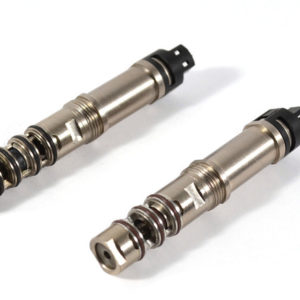

Accurate and repeatable dosing
Dual-diaphragm D-Flex™ Technology
Reliable operation in extreme environments

The MAC Liquid Valve line of products benefits from many of the same innovative features and associated benefits that have become synonymous with MAC’s performance characteristics over the years. Fast response times, reliable shifting forces and repeatable results are just some of the benefits you can expect from our fluid line of products. Proportional Flow Controls (PFC’s), Flow-Thru valves, Single and Dual Diaphragm (Media-Separated) valves, Wetted Solenoid valves and Dosing Fluid Pumps are a few of the product offerings in MAC’s liquid valve family of products. These valves also work great in pneumatic applications that require leak tight performance. The MAC Liquid Valve line of products is designed to last longer and perform stronger in the toughest applications. With fewer wear points than traditional valve technology, these valves are designed to last!

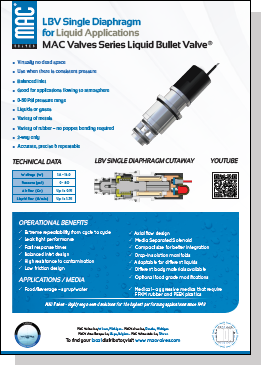

Single Diaphragm

Double Diaphragm

Wetted Solenoid

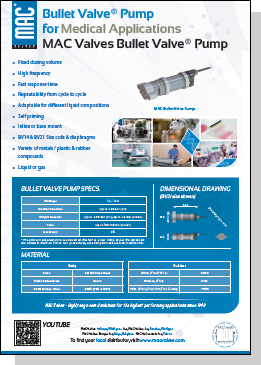

Pump-Medical

PFC

Flow-Thru

Pump

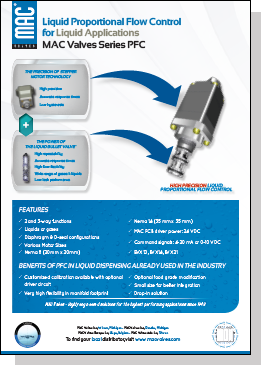

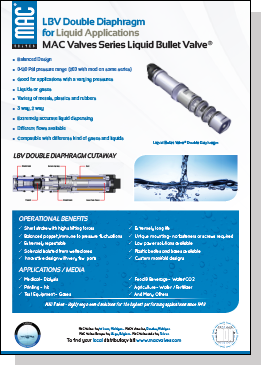

Flier

Quickview

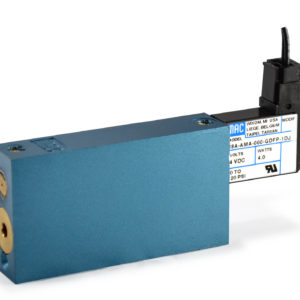

3-WAY AIR VALVES

Products

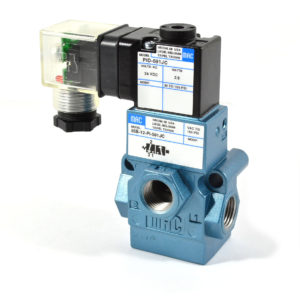

MAC Valves Solenoid Operated 3 Way

Valves with 3 ports; inlet, outlet (cylinder) and exhaust. They are generally used to operate spring return cylinders or as pilots for larger diaphragm or piston operated valves

Small 3 Way Valves

Air flows up to 1.2 Cv

Large 3 Way Valves

Air flows from 1.5 Cv and higher

Quickview

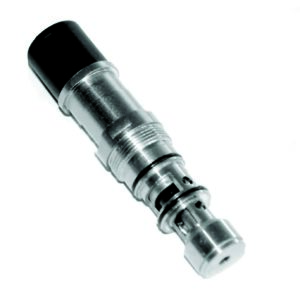

BV10

Products

10mm Bullet Valve®

MAC Advantage Features:

2-WAY (BV210) AND 3-WAY (BV310) CONFIGURATIONS AVAILABLE
VERY FEW PARTS
LONG LIFE LIFTING SOLENOID
ONE PIECE POPPET / ARMATURE
BALANCED DESIGN
SOLENOID ISOLATED FROM CONTAMINATED AIR
UNIQUE MOUNTING

The BV10 represents yet another evolution in air valve technology from MAC. The Bullet Valve® utilizes "lifting" solenoid technology. The MAC "lifting" configuration is unique, however, in that the valve maintains a balanced design - a signature feature of a MAC valve - shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations. 2-way and 3-way configurations of the BV10 cartridge are available. Application, Installation and Service Precautions

Cv (Max): 2-Way up to 0.08, 3-Way up to 0.09

Configurations: Cartridge - Manifold: Non Plug-in

Click on image to download our Bullet Valve Catalog

Quickview

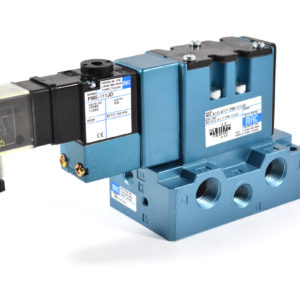

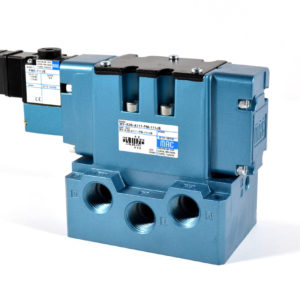

ISO VALVES

Products

Series	ISO01 info	ISO02 info	ISO1 info	ISO2 info	ISO3 info
Flow Cv	1.0	0.43	1.8	3.0	6.1
Port Size	1/4"	1/8"	1/4-3/8"	3/8-1/2"	1/2-3/4"

[sf_button colour="blue" type="standard" size="large" link="/distributors/" target="_self" icon="" dropshadow="no" rounded="yes" extraclass=""]Order This Valve[/sf_button]

Quickview

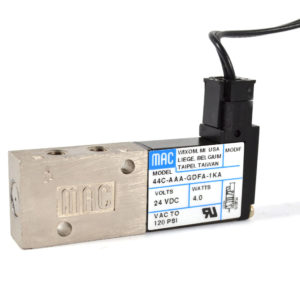

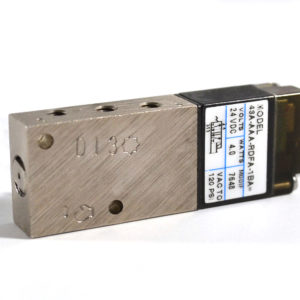

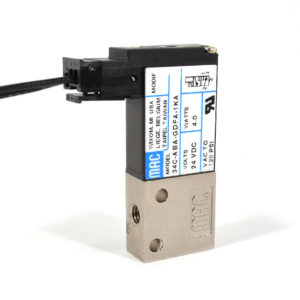

MINIATURE VALVES

Products

Series	31 info	BV info	33 info	34 info
Flow Cv	0.06	0.07	0.08	0.12
Port Size	M3		M3	M5-#10-32

Series	41 info	43 info	44 info
Flow Cv	0.035	0.07	0.10
Port Size	M3	M5-#10-32-1/8"	M5-#10-32

[sf_button colour="blue" type="standard" size="large" link="/distributors/" target="_self" icon="" dropshadow="no" rounded="yes" extraclass=""]How To Order This Valve[/sf_button]

Quickview

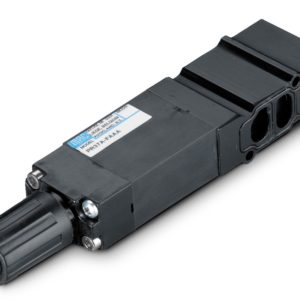

Pressure Regulator

Products

PR37A INFO	PR42A INFO	PR46A INFO	PR48A INFO	PR63D INFO
PR92C INFO	PR93A INFO	PRA01A INFO	PRA02A INFO	PRA1A INFO
PRA2A INFO		PRP1A INFO	PRP2A INFO	PRA3C INFO
PRP3B INFO		PR125A INFO	PR250B INFO

Quickview

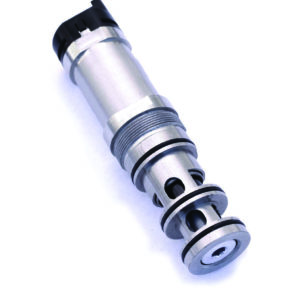

BV21

Products

21mm Bullet Valve®

MAC Advantage Features:

2-WAY (BV221) AND 3-WAY (BV321) CONFIGURATIONS AVAILABLE
VERY FEW PARTS
LONG LIFE LIFTING SOLENOID
ONE PIECE POPPET / ARMATURE
BALANCED DESIGN
SOLENOID ISOLATED FROM CONTAMINATED AIR
UNIQUE MOUNTING

The BV21 represents yet another evolution in air valve technology from MAC. The Bullet Valve® utilizes "lifting" solenoid technology. The MAC "lifting" configuration is unique, however, in that the valve maintains a balanced design - a signature feature of a MAC valve - shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations. 2-way and 3-way configurations of the BV21 cartridge are available. Application, Installation and Service Precautions
