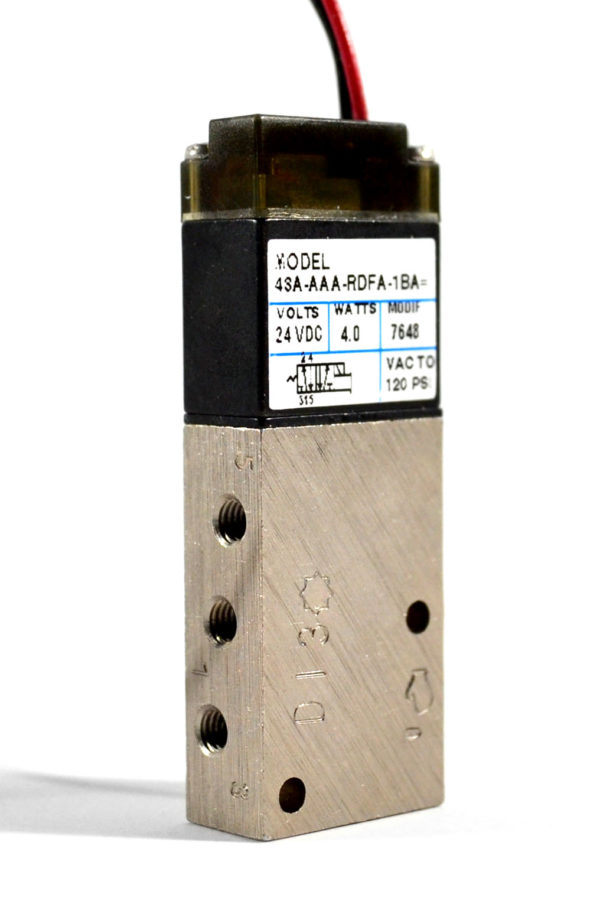

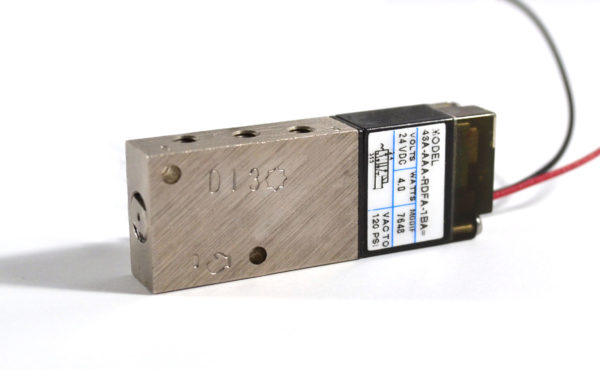

MAC 43系列是一种直接电磁阀操作的4通–；8mm–；提升阀。由于专利设计创新，这种尺寸的直接操作4通具有如此高的流量是MAC独有的。它的特点是电磁阀中的椭圆形电枢、平衡提升阀和锥形阀座。这些特点转化为高换档力，快速一致的响应时间、小包装中的高流量和长寿命。有关认证（如UL、CSA、RoHS和CE）的信息，请访问我们网站上的获取支持页面
The MAC 42 Series is a high flow 10mm solenoid pilot operated spool valve with a unique integral four way pilot. The short stroke solenoid utilizes an oval armature for maximized shifting forces in a small area. The 4-way pilot means a low minimum operating pressure - no pistons - and minimal resistance to shifting. The balaced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages of our website.
Application, Installation and Service Precautions
The MAC 47 Series is a high flow direct solenoid operated 4-way poppet valve. It features a short stroke solenoid with oval armature, a balanced poppet and conical seats. These features translate into high shifting forces, fast consistent response times, high flow in a small package and long life. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
The MAC 27 Series is a 4-way P.O.P. (Pilot Operated Poppet) designed solenoid air valve. The 4-way pilot means a low minimum operating pressure - no pistons and minimal resistance to shifting. The balanced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
Cv (Max): 1.0
Port Sizes: 1/8"-1/4"
Configurations: Inline - Individual Base: Non-Plug-in - Circuit Bar: Non Plug-in
The 26 Series valve, is a Bullet valve® piloted 4-‐way, 5-‐ported, valve achieving a flow rate of .25 Cv. Over two years of development has gone into the optimization of this new valve series which, while originally designed for the high speed dispensing market, can be utilized in a wide array of industries. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages of our website.
Application, Installation and Service Precautions
The MAC 1600 Series is ideal for applications requiring a small 4-way remote air, manual, or mechanically operated valve. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
This new valve series utilizes the patented balanced lifting technology that was developed for the Bullet Valve®, and has been implemented in the 35 Series lifting and 46 Series lifting valves. By re-configuring the standard 46 Series push type solenoid construction to a lifting design while maintaining the balanced principles of MAC Valves, we have added the benefits of longer life and greater repeatability without sacrificing the technology that has made the 46 Series a market leader. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
The MAC 24 Series is a compact - high flow - 10mm - solenoid pilot operated 4-way spool valve. The valve offers high flow not common for a valve of its size. The valve utilizes our new 8mm E-pilot with oval armature for maximized shifting forces in a small package size. The balanced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages of our website.
Application, Installation and Service Precautions
The MAC 45 Series is a direct solenoid operated 4-way poppet valve. It features a short stroke solenoid, a balanced poppet and conical seats. These features translate into high shifting forces, fast consistent response times, and long life. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
The MAC 48 Series is a high flow 16mm 4-way spool valve with a unique integral four way pilot. The short stroke solenoid utilizes an oval armature for maximized shifting forces in a small area. The 4-way pilot means a low minimum operating pressure - no pistons - and minimal resistance to shifting. The balaced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages of our website.
Application, Installation and Service Precautions
The MAC 700 Series is a versatile 4-way solenoid piloted spool valve. This series features our balanced poppet in the pilot and an air/spring return for consistent shifting regardless of inlet pressure fluctuations. Versatility in piping means the valve can be piped as a 4-way, 3-way, 2-way, normally closed or normally open or can be used for vacuum, diverter or selector applications. Our one piece bonded seal spool means longer life and easy maintenance. For information certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
The MAC 41 Series is a direct solenoid operated 4-way - 6mm - poppet valve. A direct operated 4-way of this size with such high flow is unique to MAC due to patented design innovations. It features an oval armature in the solenoid, a balanced poppet and powerful return spring. These features translate into high shifting forces, fast consistent response times, high flow in a small package and long life. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website.
Application, Intallation and Service Precautions
The MAC 400 Series is a 4-way spool valve pilot operated by a small direct operated 4-way solenoid valve - a one-off in air valve manufacturing. The 4-way pilot means a low minimum operating pressure - no pistons - and minimal resistance to shifting. The balanced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
