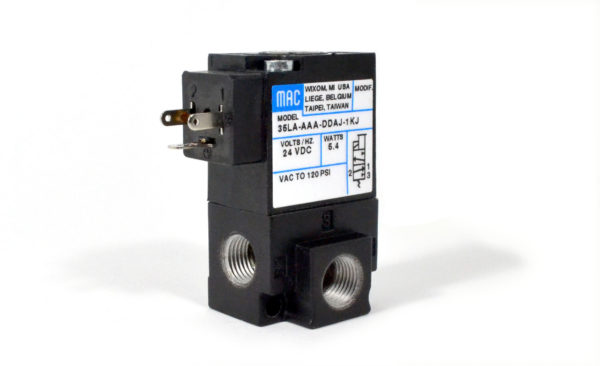

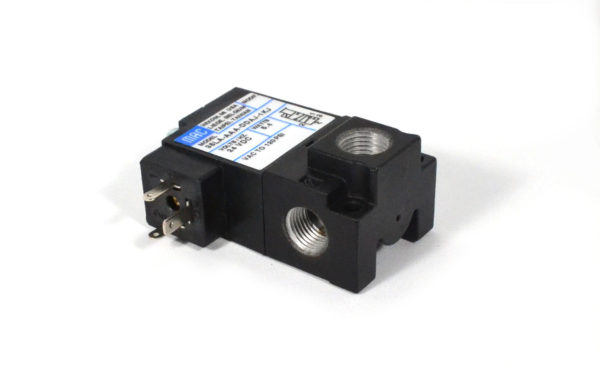

35L 系列

The MAC 38 Series is a high flow 16mm 3-way spool valve with a unique integral four way pilot.  The short stroke solenoid utilizes an oval armature for maximized shifting forces in a small area.  The 4-way pilot means a low minimum operating pressure - no pistons - and minimal resistance to shifting.  The balanced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations.  For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website. Application, Installation and Service Precautions

Cv (Max):  1.2

Port Sizes:  1/8"-1/4"

Configurations:  Individual Sub Base/Manifold:  Plug-in/Non Plug-in

38 Series Catalog Pages

38 Series Circuit Bar Pages

38 Series Regulator Pages

38 Series Remote Air Pages

38 Series MAConnect Pages

The MAC 200 Series is a direct solenoid operated 3-way poppet valve.  This unique series is also available for Hazardous Location applications (Class I/Div B,C, & D - Class II/Div E,F, & G).  It also features a short stroke solenoid, a balanced poppet and powerful return spring.  These features translate into high shifting forces, fast consistent response times and long life.  For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website. Application, Installation and Service Precautions

Cv (Max):  0.50

Port Sizes:  1/8"-1/4"

Configurations:  Inline - Hazardous Location - Manifold:  Non Plug-in

200 Series Catalog Pages

200 Series Regulator Pages

The MAC 36 Series is a high flow direct solenoid operated 3-way poppet valve.  It features a short stroke solenoid with oval armature, a balanced poppet and powerful return spring.  These features translate into high shifting forces, fast consistent reponse times, high flow in a small package and long life.  For information regarding certifications (such as UL, CSA, RoHS, and CE) please visit the Get Support pages on our website. Application, Installation and Service Precautions

Cv (Max):  0.30

Port Size:  1/8"

Configurations:  Inline - Manifold: Plug-in/Non Plug-in

36 Series Catalog Pages

36 Series Circuit Bar Pages

36 Series Regulator Pages

36 Series MAConnect Pages

This new valve series utilizes the patented balanced lifting technology that was developed for the Bullet Valve®, and has been implemented in the 35 Series lifting and 46 Series lifting valves. By reconfiguring the standard 36 Series push type solenoid construction to a lifting design while maintaining the balanced principles of MAC Valves, we have added the benefits of longer life and greater repeatability without sacrificing the technology that has made the 36 Series a market leader.  For information regarding certifications (such as UL, CSA, RoHS, and CE) please visit the Get Support pages on our website. Application, Installation and Service Precautions

Cv (Max):  0.30

Port Size:  #10-32, 1/8", M5

Configurations:  Inline - Manifold: Plug-in/Non Plug-in

36L Series Catalog Pages

The MAC 32 Series is high flow 10mm 3-way solenoid pilot operated spool valve with a unique integral four way pilot.  The short stroke solenoid utilizes an oval armature for maximized shifting forces in a small area.  The 4-way pilot means a low minimum operating pressure - no pistons - and minimal resistance to shifting.  The balanced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations.  For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website. Application, Installation and Service Precautions

Cv (Max):  0.4

Port Sizes: 1/8"-1/4"

Configurations:  Individual Sub Base/Manifold:  Plug-in/Non Plug-in

32 Series Catalog Pages

32 Series Circuit Bar Pages

32 Series Regulator Pages

32 Series MAConnect Pages

The MAC 31 series is a direct solenoid operated 3-way - 6mm - poppet valve. A direct operated 3-way of this size with such high flow is unique to MAC due to patented design innovations. It features an oval armature in the solenoid, a balanced poppet and powerful return spring. These features translate into high shifting forces, fast consistent response times, high flow in a small package and long life. For information regarding certifications (such as UL, CSA, RoHS, and CE) please visit the Get Support pages on our website. Application, Installation and Service Precautions

Cv (Max): 0.06

Port Sizes: M3

Configurations: Inline - Manifold: Plug-in/Non Plug-in

31 Series Catalog Pages
