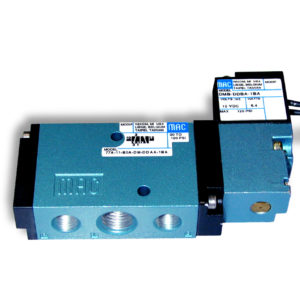

The MAC 77 Series valve is a 3-way balanced P.O.P. (Pilot Operated Poppet) valve pilot operated by a small direct operated 4-way solenoid valve - a one-off in air valve manufacturing.  The 4-way pilot means a low minimum operating pressure - no pistons - and minimal resistance to shifting.  The balanced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations.  For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website. Application, Installation and Service Precautions

Cv (Max):  1.0

Port Sizes:  1/8"-1/4"

Configurations:  Inline - Individual Base:  Non Plug-in - Circuit Bar:  Non Plug-in

77 Series Catalog Pages

Cv (Max):  0.08

Port Sizes:  M3

Configurations:  Inline - Manifold:  Plug-in/Non Plug-in

33 Series Catalog Pages

33 Series Circuit Bar Pages

The MAC 31 series is a direct solenoid operated 3-way - 6mm - poppet valve. A direct operated 3-way of this size with such high flow is unique to MAC due to patented design innovations. It features an oval armature in the solenoid, a balanced poppet and powerful return spring. These features translate into high shifting forces, fast consistent response times, high flow in a small package and long life. For information regarding certifications (such as UL, CSA, RoHS, and CE) please visit the Get Support pages on our website. Application, Installation and Service Precautions

Cv (Max): 0.06

Port Sizes: M3

Configurations: Inline - Manifold: Plug-in/Non Plug-in

31 Series Catalog Pages

The MAC 37 Series is a high flow direct solenoid operated 3-way poppet valve.  It features a short stroke solenoid with oval armature, a balanced poppet and powerful return spring.  These features translate into high shifting forces, fast consistent response times, high flow in a small package and long life.  For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages of our website. Application, Installation and Service Precautions

Cv (Max):  0.50

Port Sizes:  1/8"-1/4"

Configurations:  Inline - Individual Sub Base/Manifold:  Plug-in/Non Plug-in

37 Series Catalog Pages

37 Series Circuit Bar Pages

37 Series Regulator Pages

The MAC 35L Series is a direct solenoid operated 3-way poppet valve featuring our Bullet Valve™ technology (patents pending).  The Bullet Valve™ design is a unique hybrid technology that utilizes a "lifting" solenoid (denoted by the "L" in 35L) with an integrated armature/balanced poppet.  The solenoid configuration features fewer parts and fewer wear points than our standard 35 series solenoid.  Our lifting solenoid design is isolated from airline contaminants and our signature balanced design means consistent shifting forces and repeatable response times regardless of inlet pressure fluctuations. Application, Installation and Service Precautions

Cv (Max):  0.17

Port Size:  1/8"

Configurations:  Inline - Stacking - Sub Base/Manifold:  Non Plug-in

35L Series Catalog Pages

The MAC 36 Series is a high flow direct solenoid operated 3-way poppet valve.  It features a short stroke solenoid with oval armature, a balanced poppet and powerful return spring.  These features translate into high shifting forces, fast consistent reponse times, high flow in a small package and long life.  For information regarding certifications (such as UL, CSA, RoHS, and CE) please visit the Get Support pages on our website. Application, Installation and Service Precautions

Cv (Max):  0.30

Port Size:  1/8"

Configurations:  Inline - Manifold: Plug-in/Non Plug-in

36 Series Catalog Pages

36 Series Circuit Bar Pages

36 Series Regulator Pages

36 Series MAConnect Pages
