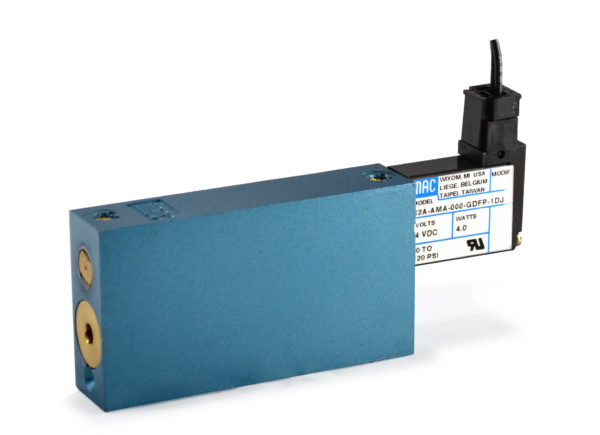

MAC 32系列是高流量10毫米三通电磁阀先导操纵滑阀，具有独特的整体式四通先导阀。短冲程电磁阀采用椭圆形电枢，在小范围内实现最大换档力。四通先导阀意味着低最低工作压力–；无活塞–；对换档的阻力最小。先导中的平衡设计意味着换档力始终很高，响应时间可重复，而不考虑进口压力波动。有关认证（如UL、CSA、RoHS和CE）的信息，请访问我们网站上的获取支持页面
The Mac 34 series is a direct solenoid operated 3-way - 10mm - poppet valve. A direct operated 3-way of this size with such high flow is unique to MAC due to patented design innovations. It features an oval armature in the solenoid, a balanced poppet and powerful return spring. These features translate into high shifting forces, fast consistent response times, high flow in a small package and long life. For information regarding certifications (such as UL, CSA, RoHS, and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
The MAC 100 Series is a direct solenoid operated 3-way poppet valve. It features a short stroke solenoid, a balanced poppet and powerful return spring. These features translate into high shifting forces, fast consistent response times, and long life. Our unique balanced design means versatility in piping - the valve can be configured as a 3-way or 2-way - normally closed or normally open or can be used for vacuum, diverter, or selector applications. For information regarding certifications (such as UL, CSA, RoHS, and CE) please visit the Get Support pages on our website.
Application, Installaion and Service Precautions
Cv (Max): 0.18
Port Sizes: 1/8-1/4"
Configurations: Inline - Stacking - Sub Base/Manifold: Non Plug-in
The MAC 31 series is a direct solenoid operated 3-way - 6mm - poppet valve. A direct operated 3-way of this size with such high flow is unique to MAC due to patented design innovations. It features an oval armature in the solenoid, a balanced poppet and powerful return spring. These features translate into high shifting forces, fast consistent response times, high flow in a small package and long life. For information regarding certifications (such as UL, CSA, RoHS, and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
This new valve series utilizes the patented balanced lifting technology that was developed for the Bullet Valve®, and has been implemented in the 35 Series lifting and 46 Series lifting valves. By reconfiguring the standard 36 Series push type solenoid construction to a lifting design while maintaining the balanced principles of MAC Valves, we have added the benefits of longer life and greater repeatability without sacrificing the technology that has made the 36 Series a market leader. For information regarding certifications (such as UL, CSA, RoHS, and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
The MAC 37 Series is a high flow direct solenoid operated 3-way poppet valve. It features a short stroke solenoid with oval armature, a balanced poppet and powerful return spring. These features translate into high shifting forces, fast consistent response times, high flow in a small package and long life. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages of our website.
Application, Installation and Service Precautions
Cv (Max): 0.50
Port Sizes: 1/8"-1/4"
Configurations: Inline - Individual Sub Base/Manifold: Plug-in/Non Plug-in
The MAC 36 Series is a high flow direct solenoid operated 3-way poppet valve. It features a short stroke solenoid with oval armature, a balanced poppet and powerful return spring. These features translate into high shifting forces, fast consistent reponse times, high flow in a small package and long life. For information regarding certifications (such as UL, CSA, RoHS, and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
The MAC 1100 Series is a versatile 3-way mechanically operated valve. This series features a wide variety of manual operator options, from levers and push-buttons to cams and remote air operated versions. Our unique balanced design means versitility in piping - the valve can be configured as a 3-way or 2-way - normally closed or normally open or can be used for vacuum, diverter, or selector applications. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
The MAC 38 Series is a high flow 16mm 3-way spool valve with a unique integral four way pilot. The short stroke solenoid utilizes an oval armature for maximized shifting forces in a small area. The 4-way pilot means a low minimum operating pressure - no pistons - and minimal resistance to shifting. The balanced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
Cv (Max): 1.2
Port Sizes: 1/8"-1/4"
Configurations: Individual Sub Base/Manifold: Plug-in/Non Plug-in
The MAC 72 Series valve is a 3-way balanced P.O.P. (Pilot Operated Poppet) valve - pilot operated by our Bullet Valve® technology - patents pending. The Bullet Valve® utilizes "lifting" solenoid technology. The MAC "lifting" configuration is unique, however, in that the valve maintains a balanced design - a signature feature of a MAC valve - as shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
Cv (Max): 0.4
Port Sizes: #10-21, M5, M7
Configurations: Inline - Individual Base: Non Plug-in - Circuit Bar: Non Plug-in
The MAC 35L Series is a direct solenoid operated 3-way poppet valve featuring our Bullet Valve™ technology (patents pending). The Bullet Valve™ design is a unique hybrid technology that utilizes a "lifting" solenoid (denoted by the "L" in 35L) with an integrated armature/balanced poppet. The solenoid configuration features fewer parts and fewer wear points than our standard 35 series solenoid. Our lifting solenoid design is isolated from airline contaminants and our signature balanced design means consistent shifting forces and repeatable response times regardless of inlet pressure fluctuations.
Application, Installation and Service Precautions
Cv (Max): 0.17
Port Size: 1/8"
Configurations: Inline - Stacking - Sub Base/Manifold: Non Plug-in
The MAC 35 series is a direct solenoid operated 3-way poppet valve. It features a short stroke solenoid, a balanced poppet and powerful return spring. These features translate into high shifting forces, fast consistent response times, and long life. Our unique balanced design means virsatility in piping - the valve can be configured as a 3-way or 2-way - normally closed or normally open or can be used for vacuum, divertor or selector applications. For information regarding certifications (such as UL, CSA, RoHS, and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
Cv (Max): 0.17
Port Size: 1/8"
Configurations: Inline - Stacking - Sub Base/Manifold: Non Plug-in
The MAC 77 Series valve is a 3-way balanced P.O.P. (Pilot Operated Poppet) valve pilot operated by a small direct operated 4-way solenoid valve - a one-off in air valve manufacturing. The 4-way pilot means a low minimum operating pressure - no pistons - and minimal resistance to shifting. The balanced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
Cv (Max): 1.0
Port Sizes: 1/8"-1/4"
Configurations: Inline - Individual Base: Non Plug-in - Circuit Bar: Non Plug-in
