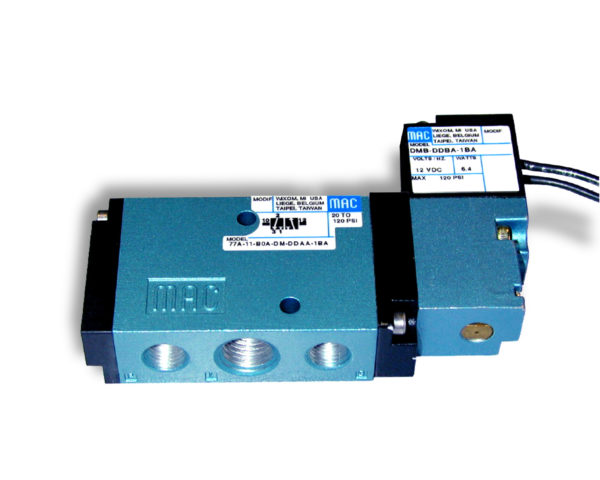

77 系列

This new valve series utilizes the patented balanced lifting technology that was developed for the Bullet Valve®, and has been implemented in the 35 Series lifting and 46 Series lifting valves. By reconfiguring the standard 36 Series push type solenoid construction to a lifting design while maintaining the balanced principles of MAC Valves, we have added the benefits of longer life and greater repeatability without sacrificing the technology that has made the 36 Series a market leader.  For information regarding certifications (such as UL, CSA, RoHS, and CE) please visit the Get Support pages on our website. Application, Installation and Service Precautions

Cv (Max):  0.30

Port Size:  #10-32, 1/8", M5

Configurations:  Inline - Manifold: Plug-in/Non Plug-in

36L Series Catalog Pages

The MAC 32 Series is high flow 10mm 3-way solenoid pilot operated spool valve with a unique integral four way pilot.  The short stroke solenoid utilizes an oval armature for maximized shifting forces in a small area.  The 4-way pilot means a low minimum operating pressure - no pistons - and minimal resistance to shifting.  The balanced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations.  For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website. Application, Installation and Service Precautions

Cv (Max):  0.4

Port Sizes: 1/8"-1/4"

Configurations:  Individual Sub Base/Manifold:  Plug-in/Non Plug-in

32 Series Catalog Pages

32 Series Circuit Bar Pages

32 Series Regulator Pages

32 Series MAConnect Pages

The MAC 72 Series valve is a 3-way balanced P.O.P. (Pilot Operated Poppet) valve - pilot operated by our Bullet Valve® technology - patents pending.  The Bullet Valve® utilizes "lifting" solenoid technology.  The MAC "lifting" configuration is unique, however, in that the valve maintains a balanced design - a signature feature of a MAC valve - as shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations.  For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website. Application, Installation and Service Precautions

Cv (Max):  0.4

Port Sizes:  #10-21, M5, M7

Configurations:  Inline - Individual Base:  Non Plug-in - Circuit Bar:  Non Plug-in

72 Series Catalog Pages

The MAC 37 Series is a high flow direct solenoid operated 3-way poppet valve.  It features a short stroke solenoid with oval armature, a balanced poppet and powerful return spring.  These features translate into high shifting forces, fast consistent response times, high flow in a small package and long life.  For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages of our website. Application, Installation and Service Precautions

Cv (Max):  0.50

Port Sizes:  1/8"-1/4"

Configurations:  Inline - Individual Sub Base/Manifold:  Plug-in/Non Plug-in

37 Series Catalog Pages

37 Series Circuit Bar Pages

37 Series Regulator Pages

Cv (Max):  0.08

Port Sizes:  M3

Configurations:  Inline - Manifold:  Plug-in/Non Plug-in

33 Series Catalog Pages

33 Series Circuit Bar Pages

The MAC 35 series is a direct solenoid operated 3-way poppet valve.  It features a short stroke solenoid, a balanced poppet and powerful return spring.  These features translate into high shifting forces, fast consistent response times, and long life.  Our unique balanced design means virsatility in piping - the valve can be configured as a 3-way or 2-way - normally closed or normally open or can be used for vacuum, divertor or selector applications.  For information regarding certifications (such as UL, CSA, RoHS, and CE) please visit the Get Support pages on our website. Application, Installation and Service Precautions

Cv (Max):  0.17

Port Size:  1/8"

Configurations:  Inline - Stacking - Sub Base/Manifold:  Non Plug-in

35 Series Catalog Pages

35 Series Circuit Bar Pages

35 Series Regulator Pages

35 Series Remote Air Pages

35 Series Intrinsically Safe Pages
