MAC 55系列是一个三通平衡滑阀，由一个小的直接操作平衡提升阀控制。这是一个非常多功能的阀门：1。它可以在真空中转换使用。2只需旋转先导和阀体之间的适配器，即可将其从内部先导功能变为外部先导功能。三。它也可以转换为远程气动阀，只需拆下电磁阀先导总成–；举几个例子。有关认证（如UL、CSA、RoHS和CE）的信息，请访问我们网站上的获取支持页面.
The MAC 53 Series is a 3-way balanced spool valve piloted by a small direct operated 4-way solenoid pilot - a one-off in air valve manufacturing. The 4-way pilot means a low minimum operating pressure - no pistons or springs - and minimal resistance to shifting. The balanced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
Cv (Max): 2
Port Sizes: 1/4"-3/8"
Configurations: Individual Sub Base - Manifold: Non Plug-in
The MAC 67 Series is a 3-way balanced spool valve piloted by a small direct operated 4-way solenoid pilot - a one-off in air valve manufacturing. The 4-way pilot means a low minimum operating pressure - no pistons or springs - and minimal resistance to shifting. The balanced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions

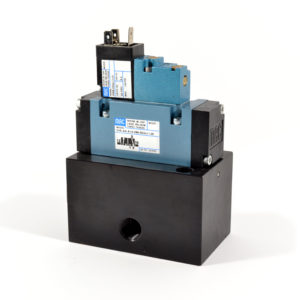

The MAC 54 Series is a 3-way balanced spool valve piloted by a small direct operated balanced poppet valve. This is an extremely versatile valve: 1. It can be converted for use in vacuum. 2. It can be changed from a Normally Closed function to a Normally Open function. Huge flow in a compact package size is the best way to describe this valve series. 3. It also can be converted to a remote air operated valve by removing the solenoid pilot assembly - just to name a few. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
The MAC 59 Series is a 3-way balanced spool valve piloted by our 200 series (which means this large 3-way valve can also be ordered with the 200 series Hazardous Location version as a pilot - giving it the same standard). This is an extremely versatile valve: 1. It can be converted for use in vacuum. 2. It can be changed from a Normally Closed function to a Normally Open function by simply rotating a function plate between the pilot and the main valve bodies. 3. It can also be converted to a remote air operated valve by removing the solenoid pilot assembly - just to name a few. For information regarding certifications (such as CL, CSA, RoHS and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions

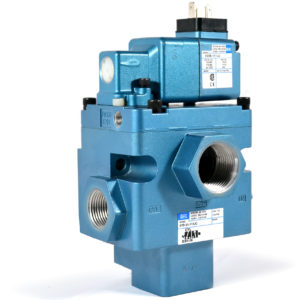

The MAC 57 Series is a 3-way balanced spool valve piloted by our 200 series (which means this large 3-way valve can also be ordered with the 200 series Hazardous Location version as a pilot - giving it the same standard). This is an extremely versatile valve: 1. It can be converted for use in vacuum. 2. It can be changed from a Normally Closed function to a Normally Open function by simply rotating a function plate between the pilot and the main valve bodies. 3. It can also be converted to a remote air operated valve by removing the solenoid pilot assembly - just to name a few. For information regarding certifications (such as CL, CSA, RoHS and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions

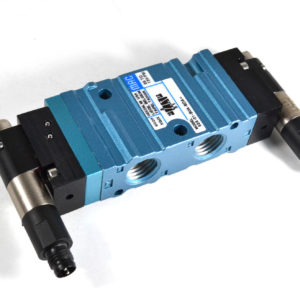

The MAC 52 Series is a 3-way balanced spool valve pilot operated by a small direct operated 4-way solenoid valve - a one-off in valve manufacturing. The 4-way pilot means a low minimum operating pressure - no pistons - and minimal resistance to shifting. The balanced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
Cv (Max): 1.5
Port Sizes: 1/8"-1/4"
Configurations: Inline/Sub Base - Manifold: Non Plug-in

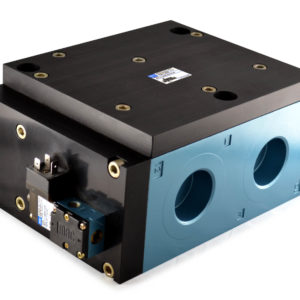

The MAC 69 Series is a 3-way balanced spool valve piloted by a small direct operated 4-way solenoid pilot - a one-off in air valve manufacturing. The 4-way pilot means a low minimum operating pressure - no pistons or springs - and minimal resistance to shifting. The balanced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
The MAC 56 Series is a 3-way balanced spool valve piloted by a small direct operated balanced poppet valve. This is an extremely versatile valve: 1. It can be converted for use in vacuum. 2. It can be changed from a Normally Closed function to a Normally Open function by simply rotating a function plate between the pilot and main valve bodies. 3. It can also be converted to a remote air operated valve by removing the solenoid pilot assembly - just to name a few. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
The MAC 58 Series is a 3-way balanced spool valve piloted by our 200 series (which means this large 3-way valve can also be ordered with the 200 series Hazardous Location version as a pilot - giving it the same standard). This is an extremely versatile valve: 1. It can be converted for use in vacuum. 2. It can be changed from a Normally Closed function to a Normally Open function by simply rotating a function plate between the pilot and the main valve bodies. 3. It can also be converted to a remote air operated valve by removing the solenoid pilot assembly - just to name a few. For information regarding certifications (such as CL, CSA, RoHS and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
The MAC 68 Series is a 3-way balanced spool valve pilot operated by a small direct operated 4-way solenoid valve - a one-off in valve manufacturing. The 4-way pilot means a low minimum operating pressure - no pistons or springs - and minimal resistance to shifting. The balanced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
