34 系列丨Mac Valves

34 系列

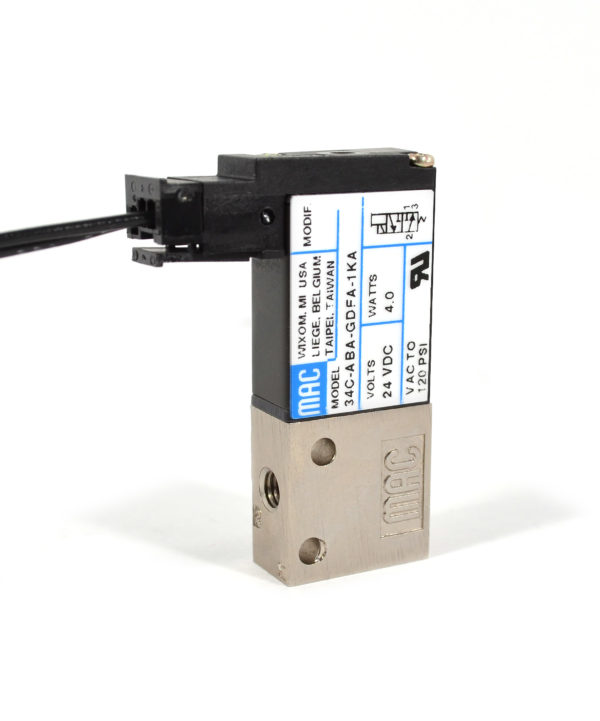

Mac 34系列是一种直接电磁阀操作的3通–；10mm–；提升阀。由于专利设计创新，这种尺寸的直接操作3通具有如此高的流量是Mac独有的。它的特点是电磁阀中的椭圆形电枢、平衡提升阀和强大的回位弹簧。这些特点转化为高换档力，快速一致的响应时间、小包装中的高流量和长寿命。有关认证（如UL、CSA、RoHS和CE）的信息，请访问我们网站上的获取支持页面。

应用、安装和维修注意事项

最高流量Cv (Max): 0.12

接口尺寸: M5-10-32

Configurations: Manifold: Plug-in/Non Plug-in

The MAC 35L Series is a direct solenoid operated 3-way poppet valve featuring our Bullet Valve™ technology (patents pending). The Bullet Valve™ design is a unique hybrid technology that utilizes a "lifting" solenoid (denoted by the "L" in 35L) with an integrated armature/balanced poppet. The solenoid configuration features fewer parts and fewer wear points than our standard 35 series solenoid. Our lifting solenoid design is isolated from airline contaminants and our signature balanced design means consistent shifting forces and repeatable response times regardless of inlet pressure fluctuations. Application, Installation and Service Precautions

Cv (Max): 0.17

Port Size: 1/8"

Configurations: Inline - Stacking - Sub Base/Manifold: Non Plug-in

35L Series Catalog Pages

Quickview

36 Series

Small 3-Way Valves

The MAC 36 Series is a high flow direct solenoid operated 3-way poppet valve. It features a short stroke solenoid with oval armature, a balanced poppet and powerful return spring. These features translate into high shifting forces, fast consistent reponse times, high flow in a small package and long life. For information regarding certifications (such as UL, CSA, RoHS, and CE) please visit the Get Support pages on our website. Application, Installation and Service Precautions

Cv (Max): 0.30

Port Size: 1/8"

Configurations: Inline - Manifold: Plug-in/Non Plug-in

36 Series Catalog Pages

36 Series Circuit Bar Pages

36 Series Regulator Pages

36 Series MAConnect Pages

Quickview

33 Series

Small 3-Way Valves

The Mac 33 series is a direct solenoid operated 3-way - 8mm - poppet valve. A direct operated 3-way of this size with such high flow is unique to MAC due to patented design innovations. It features an oval armature in the solenoid, a balanced poppet and powerful return spring. These features translate into high shifting forces, fast consistent response times, high flow in a small package and long life. For information regarding certifications (such as UL, CSA, RoHS, and CE) please visit the Get Support pages on our website. Application, Installation and Service Precautions

Cv (Max): 0.08

Port Sizes: M3

Configurations: Inline - Manifold: Plug-in/Non Plug-in

33 Series Catalog Pages

33 Series Circuit Bar Pages

Quickview

35 Series

Small 3-Way Valves

The MAC 35 series is a direct solenoid operated 3-way poppet valve. It features a short stroke solenoid, a balanced poppet and powerful return spring. These features translate into high shifting forces, fast consistent response times, and long life. Our unique balanced design means virsatility in piping - the valve can be configured as a 3-way or 2-way - normally closed or normally open or can be used for vacuum, divertor or selector applications. For information regarding certifications (such as UL, CSA, RoHS, and CE) please visit the Get Support pages on our website. Application, Installation and Service Precautions

Cv (Max): 0.17

Port Size: 1/8"

Configurations: Inline - Stacking - Sub Base/Manifold: Non Plug-in

35 Series Catalog Pages

35 Series Circuit Bar Pages

35 Series Regulator Pages

35 Series Remote Air Pages

35 Series Intrinsically Safe Pages

Quickview

72 Series

Small 3-Way Valves

The MAC 72 Series valve is a 3-way balanced P.O.P. (Pilot Operated Poppet) valve - pilot operated by our Bullet Valve® technology - patents pending. The Bullet Valve® utilizes "lifting" solenoid technology. The MAC "lifting" configuration is unique, however, in that the valve maintains a balanced design - a signature feature of a MAC valve - as shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website. Application, Installation and Service Precautions

Cv (Max): 0.4

Port Sizes: #10-21, M5, M7

Configurations: Inline - Individual Base: Non Plug-in - Circuit Bar: Non Plug-in

72 Series Catalog Pages

Quickview

200 Series

Small 3-Way Valves

The MAC 200 Series is a direct solenoid operated 3-way poppet valve. This unique series is also available for Hazardous Location applications (Class I/Div B,C, & D - Class II/Div E,F, & G). It also features a short stroke solenoid, a balanced poppet and powerful return spring. These features translate into high shifting forces, fast consistent response times and long life. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website. Application, Installation and Service Precautions

Cv (Max): 0.50

Port Sizes: 1/8"-1/4"

Configurations: Inline - Hazardous Location - Manifold: Non Plug-in

200 Series Catalog Pages

200 Series Regulator Pages

Quickview

31 Series

Small 3-Way Valves

The MAC 31 series is a direct solenoid operated 3-way - 6mm - poppet valve. A direct operated 3-way of this size with such high flow is unique to MAC due to patented design innovations. It features an oval armature in the solenoid, a balanced poppet and powerful return spring. These features translate into high shifting forces, fast consistent response times, high flow in a small package and long life. For information regarding certifications (such as UL, CSA, RoHS, and CE) please visit the Get Support pages on our website. Application, Installation and Service Precautions

Cv (Max): 0.06

Port Sizes: M3

Configurations: Inline - Manifold: Plug-in/Non Plug-in

31 Series Catalog Pages

Quickview

36L Series

Small 3-Way Valves

This new valve series utilizes the patented balanced lifting technology that was developed for the Bullet Valve®, and has been implemented in the 35 Series lifting and 46 Series lifting valves. By reconfiguring the standard 36 Series push type solenoid construction to a lifting design while maintaining the balanced principles of MAC Valves, we have added the benefits of longer life and greater repeatability without sacrificing the technology that has made the 36 Series a market leader. For information regarding certifications (such as UL, CSA, RoHS, and CE) please visit the Get Support pages on our website. Application, Installation and Service Precautions

Cv (Max): 0.30

Port Size: #10-32, 1/8", M5

Configurations: Inline - Manifold: Plug-in/Non Plug-in

36L Series Catalog Pages

Quickview

1100 Series

Small 3-Way Valves

The MAC 1100 Series is a versatile 3-way mechanically operated valve. This series features a wide variety of manual operator options, from levers and push-buttons to cams and remote air operated versions. Our unique balanced design means versitility in piping - the valve can be configured as a 3-way or 2-way - normally closed or normally open or can be used for vacuum, diverter, or selector applications. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website. Application, Installation and Service Precautions

Cv (Max): 0.18

Port Sizes: 1/8-1/4"

Inline - Sub Base/Manifold

1100 Series Catalog Pages

1100 Series Remote Air Pages

Quickview

38 Series

Small 3-Way Valves

The MAC 38 Series is a high flow 16mm 3-way spool valve with a unique integral four way pilot. The short stroke solenoid utilizes an oval armature for maximized shifting forces in a small area. The 4-way pilot means a low minimum operating pressure - no pistons - and minimal resistance to shifting. The balanced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website. Application, Installation and Service Precautions

Cv (Max): 1.2

Port Sizes: 1/8"-1/4"

Configurations: Individual Sub Base/Manifold: Plug-in/Non Plug-in

38 Series Catalog Pages

38 Series Circuit Bar Pages

38 Series Regulator Pages

38 Series Remote Air Pages

38 Series MAConnect Pages

Quickview

32 Series

Small 3-Way Valves

The MAC 32 Series is high flow 10mm 3-way solenoid pilot operated spool valve with a unique integral four way pilot. The short stroke solenoid utilizes an oval armature for maximized shifting forces in a small area. The 4-way pilot means a low minimum operating pressure - no pistons - and minimal resistance to shifting. The balanced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website. Application, Installation and Service Precautions

Cv (Max): 0.4

Port Sizes: 1/8"-1/4"

Configurations: Individual Sub Base/Manifold: Plug-in/Non Plug-in

32 Series Catalog Pages

32 Series Circuit Bar Pages

32 Series Regulator Pages

32 Series MAConnect Pages

Quickview

77 Series

Small 3-Way Valves

The MAC 77 Series valve is a 3-way balanced P.O.P. (Pilot Operated Poppet) valve pilot operated by a small direct operated 4-way solenoid valve - a one-off in air valve manufacturing. The 4-way pilot means a low minimum operating pressure - no pistons - and minimal resistance to shifting. The balanced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website. Application, Installation and Service Precautions

34 系列

最高流量Cv (Max): 0.12

接口尺寸: M5-10-32

Configurations: Manifold: Plug-in/Non Plug-in

34 系列产品资料

34 系列参数表

34 系列调整页面

34 系列

最高流量Cv (Max): 0.12

接口尺寸: M5-10-32

Configurations: Manifold: Plug-in/Non Plug-in
